Products Description
3D 360degree bird view description and feature

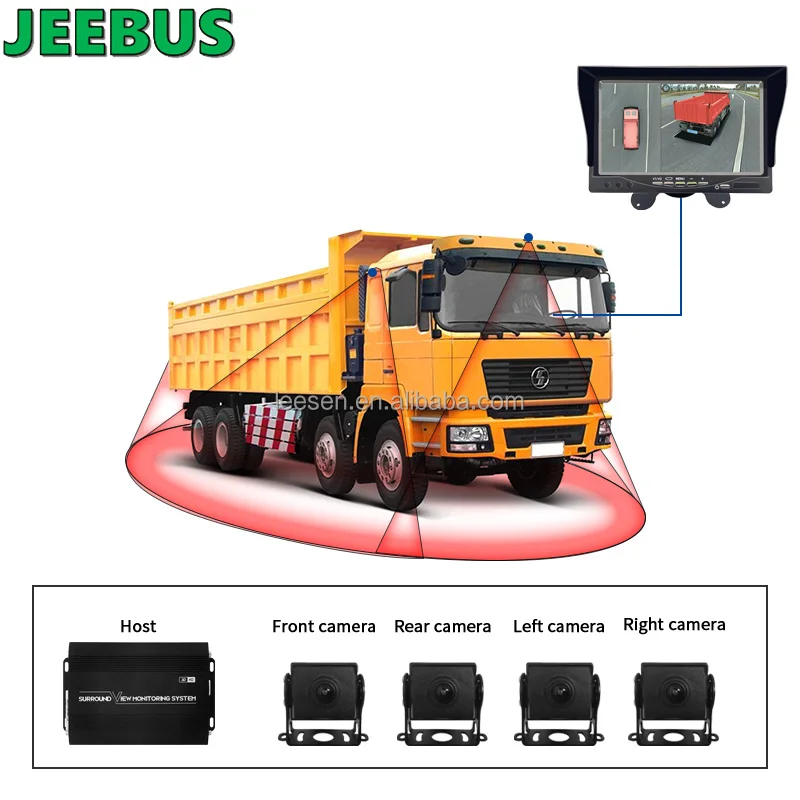

The system synthesizes the images of four big wide angle fisheye lenss outside the vehicle into a 3D 360 degree panoramicimage,througn software algorithm,superimposes a virtual 3D vehicle model, and through the video signal to transmits the real-time surrounding view of the vehicle display on the screen. This system is an on-board DVR system. HD night vision 360 degree surround bird view system can get real surround vision of driving and parking,help to avoid blind spots and secure driving safety! Which provides users with all-weather driving,record,driving、parking assistance and other functions. It is an on-board high-tech intelligent hardware products.
|
Product Name
|
HD Night Vision Waterproof 1080P 3D 360 Degree Bird View System Car DVR Rear View Reverse Security System for dumping Truck
|
|||
|
Main parameter
|
main parameter
|
|||
|
Parameter type
|
Specifications
|
Numerical value
|
||
|
Video output
|
AHD
|
RCA 720P (25/30fps)
|
||
|
Video out
|
CVBS
|
RCA 720P (NTSC/PAL)
|
||
|
VGA
|
15P(720P60/1080P30HZ)
|
|||
|
Camera power
|
Dial swith/Control
|
5.2/7.2/8/12V
|
||
|
Camera video
|
4*1080P
|
1920*1080P
|
||
|
Electromagnetic compatibility
|
(ESD)
|
6KV
|
||
|
(RI01)
|
20M – 400M,60mA
|
|||
|
(RE01)
|
30MHz to 1 GHz
|
|||
|
Trigger signal
|
High beam
|
Supported
|
||
|
cornering lamp
|
Supported
|
|||
|
reversing lamp
|
Supported
|
|||
|
Interactive signal
|
232/TTL
|
CAN
|
||
|
Videotape
|
Code
|
H.264
|
||
|
Image Resolution
|
1920*1080P@25fps/4k
|
|||
|
Bit rate
|
10Mbps,3.6Gbyte/Hour
|
|||
|
Recording medium
|
高速读写USB/固态硬盘
|
|||
|
Maximum disk capacity
|
Solid state hard disk
|
500G/1T
|
||
|
USB drive
|
128G USB2.0
|
|||
|
Power consumption
|
Non-recording status
|
9W
|
||
|
Recording status
|
10.5W(USB drive)
|
|||
|
Shutdown status
|
<50mW
|
|||
|
Physical characteristics
|
L*W*H
|
130*100*33mm(Host box)
|
||
|
Weight
|
220G(Host box)
|
|||
|
Host Working environment
|
Working temperature
|
`-30℃ – 70℃
|
||
|
Storage temperature
|
`-40℃ – 80℃
|
|||
|
Humidity tolerance
|
0~95%
|
|||
|
Voltage tolerance
|
Working voltage 12V-24V
|
9.5-18/18-38
|
||
Details Images
Product packaging & Shipping method
Recommend Products
FAQ
Q1. Are you factory?
A1: Yes.We are factory. Q2: What are your price?
A2: our price is depend on customer’s quantity,chip sensor,wide angle and other requirements. Q3. What is your MOQ?
A3: 10set for each model, sample order available. Any quantity for stock models. Q4: Is your camera waterproof?
A4: Yes. We put each camera into water 1meter deep for 4hours testing. IP67, IP68 . Q5. What is your terms of packing?
A5: Standard packing is each pcs in 1 box,10 pcs/20/50 in 1 carton. Q6: What’s the delivery time?
A6: 3 Working days for sample order.Bulk production time 5-15working days after received deposit. Q7: What is your products warranty?
A7: All products with 12 months quality warranty. Q8: What’s your payment method ?
A8: T/T or Western Union and Money Gram. Q9.How about the shipping cost?
A9.The shipping cost depends on the way you choose to get the goods. Air shipping (DHL/FedEx/UPS/EMS) is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight cost depend on the details of amount, weight and shipping way.
A1: Yes.We are factory. Q2: What are your price?
A2: our price is depend on customer’s quantity,chip sensor,wide angle and other requirements. Q3. What is your MOQ?
A3: 10set for each model, sample order available. Any quantity for stock models. Q4: Is your camera waterproof?
A4: Yes. We put each camera into water 1meter deep for 4hours testing. IP67, IP68 . Q5. What is your terms of packing?
A5: Standard packing is each pcs in 1 box,10 pcs/20/50 in 1 carton. Q6: What’s the delivery time?
A6: 3 Working days for sample order.Bulk production time 5-15working days after received deposit. Q7: What is your products warranty?
A7: All products with 12 months quality warranty. Q8: What’s your payment method ?
A8: T/T or Western Union and Money Gram. Q9.How about the shipping cost?
A9.The shipping cost depends on the way you choose to get the goods. Air shipping (DHL/FedEx/UPS/EMS) is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight cost depend on the details of amount, weight and shipping way.
