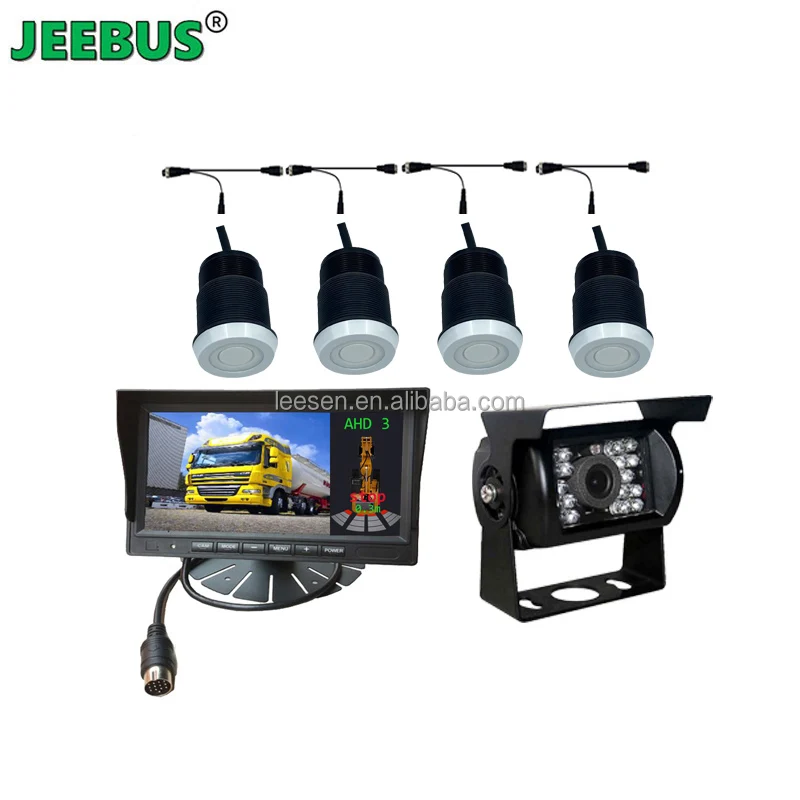

NEW Waterproof Night Vision 1080P Reverse Camera 24V Ultrasonic Digital BIBI Alarm Parking Sensor system for Truck Bus

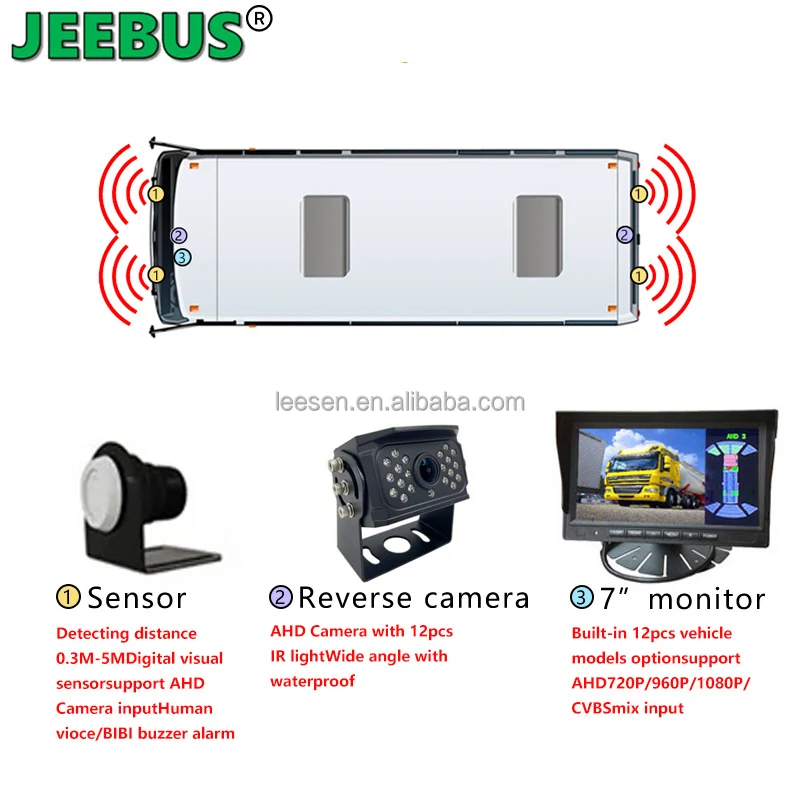

This Ultrasonic Radar Detection Visual Digital Parking Sensor System with Backup Revser Camera can get real vision the detection spot distance of driving turning,reversing and parking,it can help the drvier to avoid blind spots !with backup reverse camera monitoring can help the drivers reverse parking ,eliminating blind spots and avoid danger.This system not only can hearing the alarm warning,but also can see clear the detection distance from the vehicle.So that the driver then take the precotion and take away the danger safety. It use for public transportion,such as heavy-duty trucks,buses,engineering machinery.
|
Sensor |
Ultrasonic digital sensor |
|
Material |
Metal |
|
Power supply |
DC8-50V |
|
Operating current |
10AM/pcs |
|
Ultrasonic frequency |
40000HZ(40K) |
|
Sensor sensitivity |
-80db |
|
Detective Range |
0.3M-5M |
|
Sensor diameter |
16MM |
|
Sensor color |
Black/White optional |
|
Waterproof |
IP68 |
|
Monitor size |
7 inch |
|
Resolution |
800 x 3 (RGB) x 480 / 1024 x 3 (RGB) x600 |
|
Contrast |
500:1 |
|
Brightness |
500 cd/m2 |
|
View Angle |
U: 50 / D: 50, R/L: 60 Aspect Ratio 1 |
|
Power Supply |
DC12-36V |
|
Camera input |
1080P/960P/720P/CVBS Mix |
|
System |
NTSC/PAL auto |
|
Video output |
1080P/960P/720P/CVBS Mix |
|
Video input |
Support 3 video camera input |
|
Operating Temperature |
-20~+70ºC,RH90% |
|
Storage Temperature |
-30~+80ºC,RH90% |
|
|
|
Backup Reverse Camera |
|
|
Chip sensor |
AHD PC2053 |
|
Material |
Metal |
|
Resolution |
AHD 1920*1080P |
|
View angle |
140°(H),170°(D) |
|
System |
NTSC/PAL optional |
|
Waterproof |
IP68 |
|
Night Vision |
Yes |
|
Video output |
1080P |
|
Power supply |
DC12-24V |
|
Operating Temperature |
-20~+70ºC,RH90% |
|
Storage Temperature |
-30~+80ºC,RH90% |
Product details:
This ultrasonice radar detection digital visual parking sensor system can automatically remind &display the detecting range for the driver to avoid petential danger and make proper actions in advance.Specially in these scenarios can help a lots.
