Why Choose Us
Production Process & Customized Content
Products Description
|
Item
|

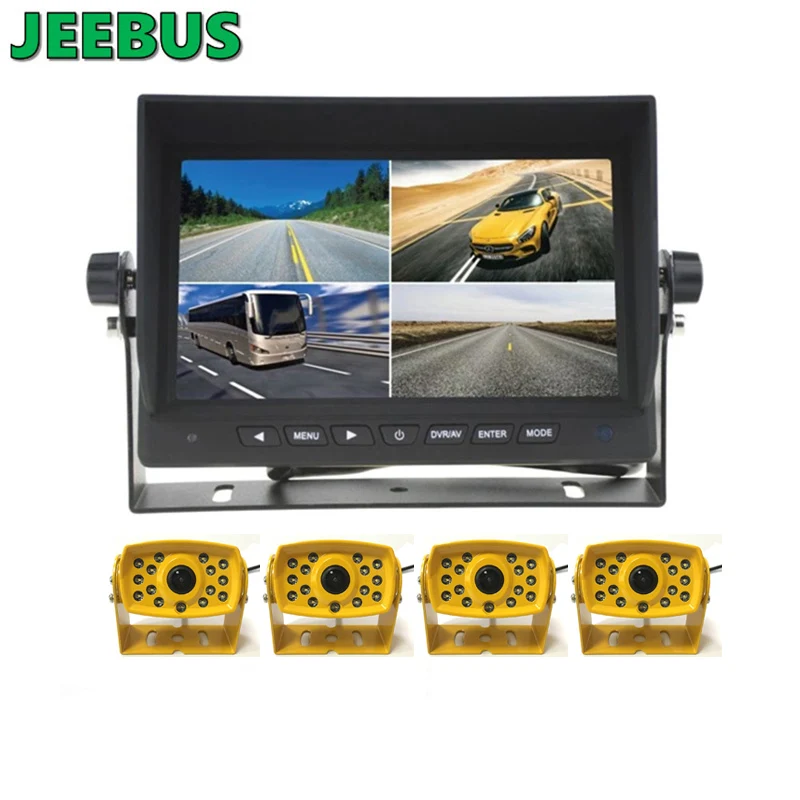

4 Ways 7″ monitor
|
|
Screen
|
IPS
|
|
Pixel
|
1024*600P
|
|
Brightness
|
500cd/m2
|
|
Contrast
|
500：１
|
|
View anlge
|
ALLL
|
|
Video input
|
4 camera input,support 3 Camera trigger Reverse
|
|
Camera input
|
Support CVBS/AHD 1080P input
|
|
TV system
|
NTSC/ PAL auto
|
|
Micro phone
|
Without
|
|
Lauguage
|
Chinese/English/Japanese /Korean/Russian
|
|
Power supply
|
9V~36V
|
|
Feature
|
Quickly start displaying images within 4.5 seconds;Support single,dual,three,quate splits display,Comes with dual-circuit
fuse;with special TVS tube(Prevent the impact of instantaneous high current surge pulse ) |
|
Camera power output
|
Support 4 ways video DC12V output
|
|
Recording
|
Support 256G TF/SD video recording(TF/SD card will buy by customer’s ownselves)
|
|
Video format
|
H264
|
|
Working current
|
180ｍA
|
|
Working rate
|
10W
|
|
Lower 0.5W
|
|
|
Operating temperatur
|
·-20℃ ~70℃
|
|
Storege temperature
|
`-40℃ ~85℃
|
|
Product size
|
180mm x 120mm （exclude bracket）
|
|
Bracket
|
Butterfully bracket (adjustable bracket)
|
|
Cable length
|
2.3M
|
|
Accessories
|
Remote,Cable,Instruction,Bracket,Dubble-stick
|
|
Adjustable item
|
Lauguage/Color/Brightness/Contrast
|
|
Box size
|
225MM*150MM*88MM universal box
|
|
Carton size
|
45*33*48CM /20PCS, N.W:13.5KG
|
|
GC2053
|
1/2.9″2Mega CMOS Image Sensor
|
|
Iamge sensor
|
1/2.9＂ GC2053+FH8536H
|
|
Pixel Size
|
2.8um x 2.8um
|
|
Active pixel array
|
1920 x 1080
|
|
Min.Lux
|
0.01Lux@(F1.2,AGC ON)
|
|
TV system
|
NTSC/PAL(option)
|
|
Shutter type
|
Electronic rolling shutter
|
|
ADC resolution
|
10 bit ADC
|
|
Max Frame rate
|
1080P@25fps / 1080P@30fps
|
|
Video output
|
AHD
|
|
Current output
|
DC:12V ±10%
|
|
Power Consumption
|
TBD
|
|
SNR
|
TBD
|
|
Dark Current
|
TBD
|
|
Sensitivity
|
TBD
|
|
Dynamic range
|
TBD
|
|
Operating temperature:
|
-20~80℃
|
|
Stable Image temperature
|
0~60℃
|
|
Optimal lens chief ray angle(CRA)
|
12°(linear)
|
|
Package type
|
CSP
|
|
Input clock frequency
|
6~27MHz
|
Details Images
Product packaging & Shipping method
Recommend Products
FAQ
Q1. Are you factory?
A1: Yes.We are factory. Q2: What are your price?
A2: our price is depend on customer’s quantity,chip sensor,wide angle and other requirements. Q3. What is your MOQ?
A3: 10set for each model, sample order available. Any quantity for stock models. Q4: Is your camera waterproof?
A4: Yes. We put each camera into water 1meter deep for 4hours testing. IP67, IP68 . Q5. What is your terms of packing?
A5: Standard packing is each pcs in 1 box,10 pcs/20/50 in 1 carton. Q6: What’s the delivery time?
A6: 3 Working days for sample order.Bulk production time 5-15working days after received deposit. Q7: What is your products warranty?
A7: All products with 12 months quality warranty. Q8: What’s your payment method ?
A8: T/T or Western Union and Money Gram. Q9.How about the shipping cost?
A9.The shipping cost depends on the way you choose to get the goods. Air shipping (DHL/FedEx/UPS/EMS) is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight cost depend on the details of amount, weight and shipping way.
A1: Yes.We are factory. Q2: What are your price?
A2: our price is depend on customer’s quantity,chip sensor,wide angle and other requirements. Q3. What is your MOQ?
A3: 10set for each model, sample order available. Any quantity for stock models. Q4: Is your camera waterproof?
A4: Yes. We put each camera into water 1meter deep for 4hours testing. IP67, IP68 . Q5. What is your terms of packing?
A5: Standard packing is each pcs in 1 box,10 pcs/20/50 in 1 carton. Q6: What’s the delivery time?
A6: 3 Working days for sample order.Bulk production time 5-15working days after received deposit. Q7: What is your products warranty?
A7: All products with 12 months quality warranty. Q8: What’s your payment method ?
A8: T/T or Western Union and Money Gram. Q9.How about the shipping cost?
A9.The shipping cost depends on the way you choose to get the goods. Air shipping (DHL/FedEx/UPS/EMS) is normally the most quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight cost depend on the details of amount, weight and shipping way.
